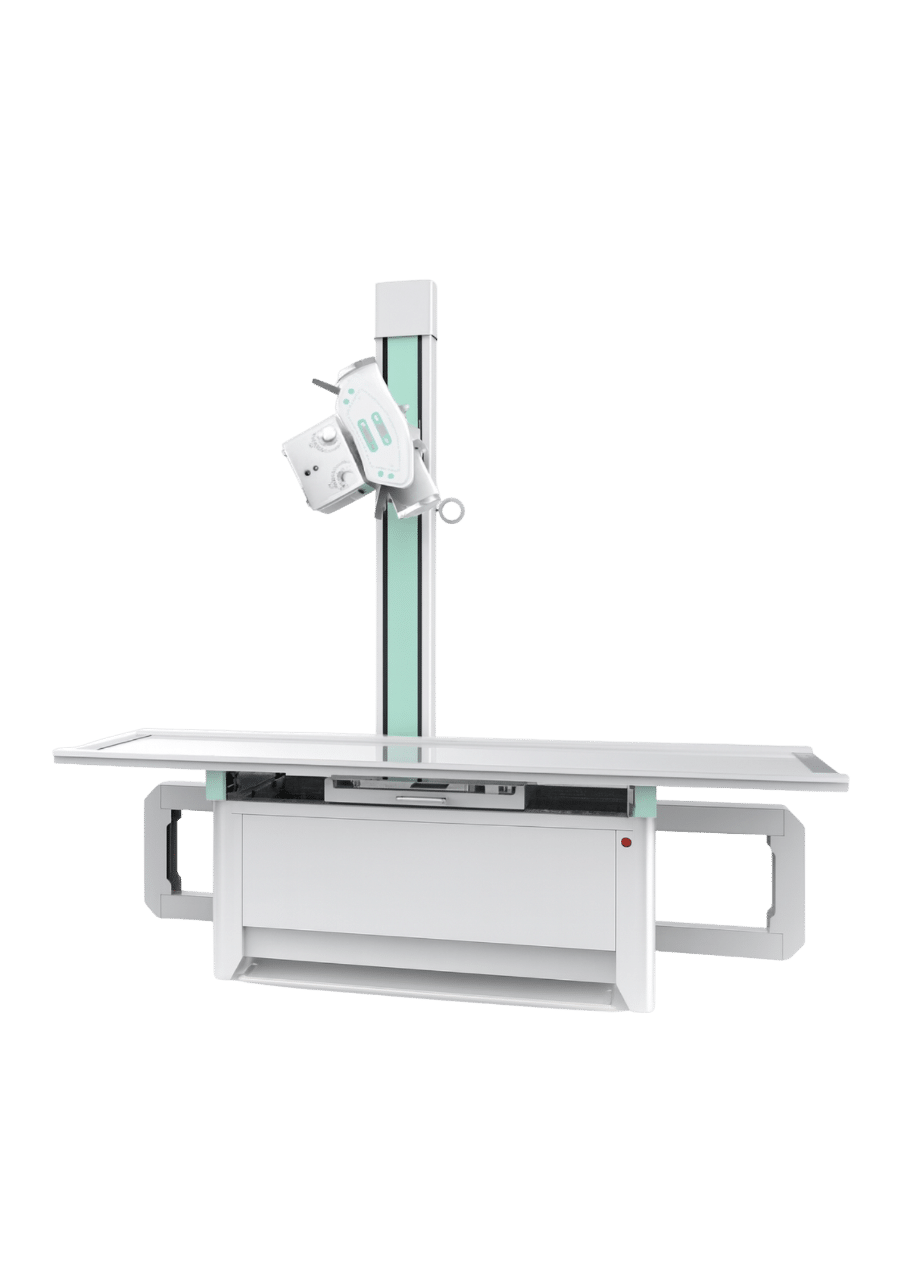

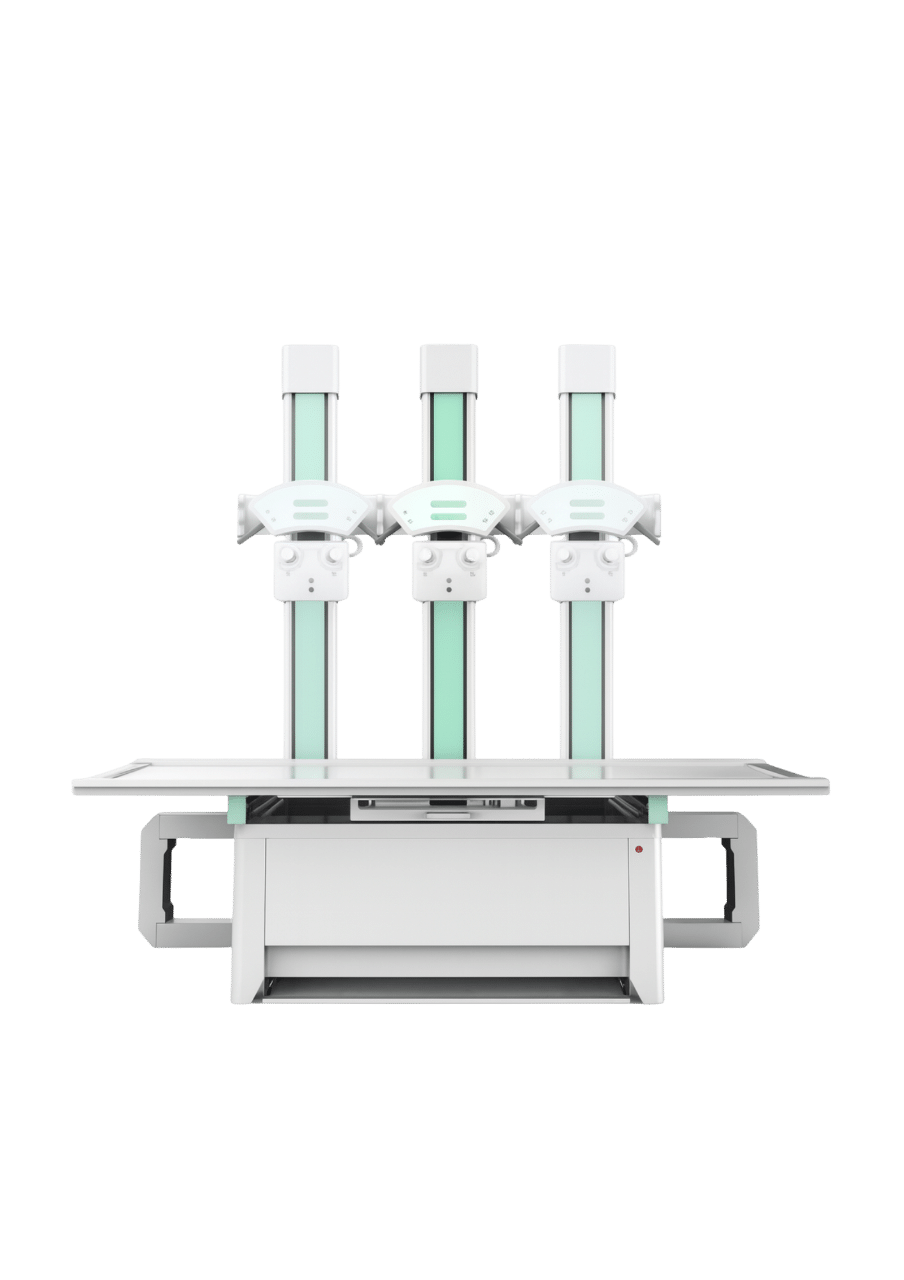

IMAX 160D diagnostic X-ray system
Manufacturer: Canon tubeIMAX 160D is a high-frequency digital X-ray system with two workstations. The system is suitable for radiography of all body parts, such as the head, extremities, chest, spine, lumbar vertebrae, abdomen, and others.
The advanced generator uses a smaller and lighter modular design and ensures high- quality X-ray radiation.
The large flat-panel detector can fully cover the entire abdominal and chest area. The high speed of direct image acquisition and seamless integration with the software significantly increase the system’s operating efficiency.

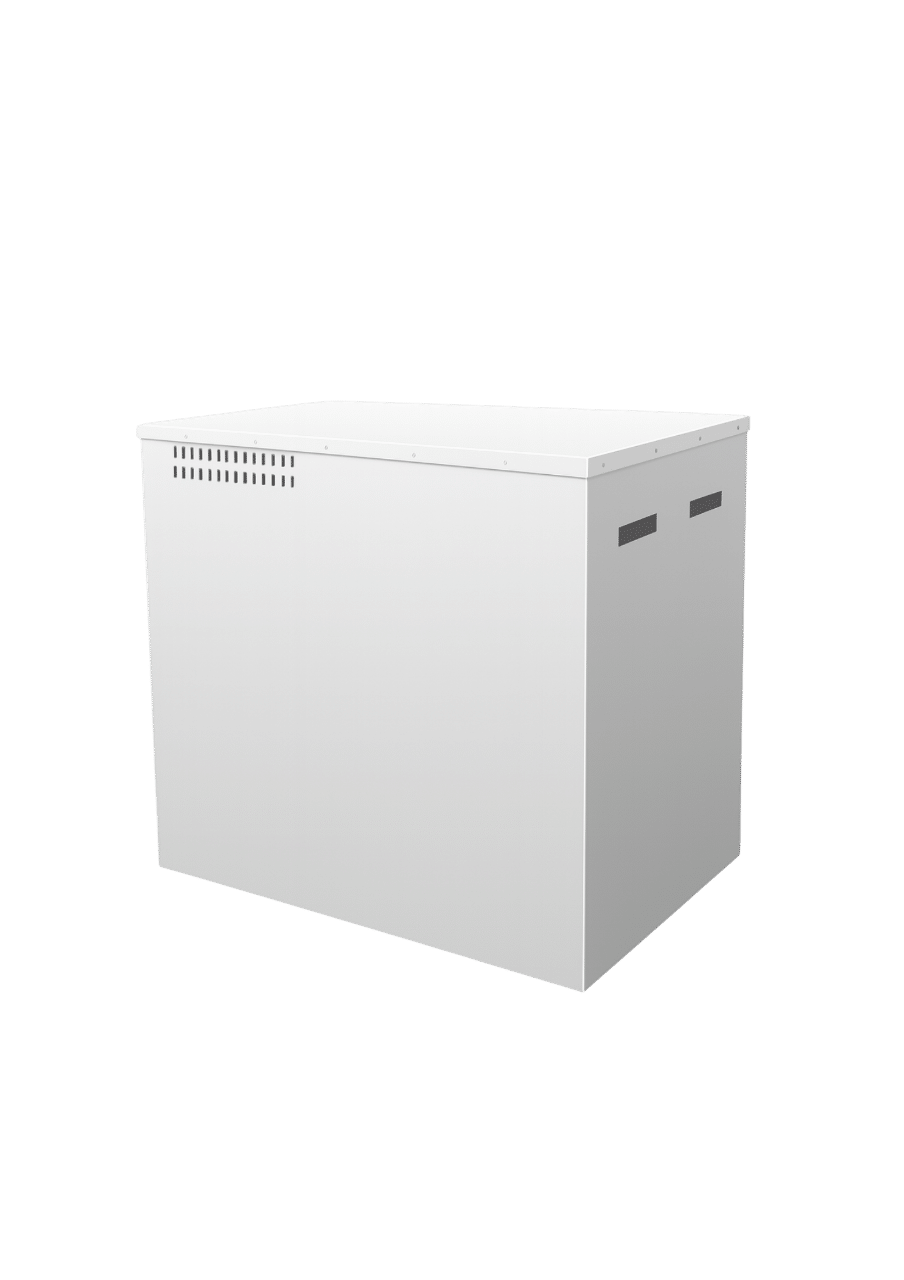

Generator:
- Power: 50 kW
- Generator frequency: 400 kHz
- Voltage range: 40 – 150 kV
X-ray tube:
- Focal spot size: 1.2 mm / 0.6 mm
- Anode heat capacity: 210 kJ
- Anode rotation speed: 2800 rpm
Flat-panel detector (2 units):
- Material: Amorphous silicon
- Type: Wired
- Detector size: 43 × 43 cm
- Pixel matrix: 3072 × 3072
- Pixel size: 139 μm
- Data output: 16 bit
Installation and commissioning
The company’s engineers carry out equipment layout planning at your facility, installation, commissioning, and calibration.
Personnel training
Training on system operation is provided at the installation site.
Warranty period
Within 12 months from the date of commissioning. The full warranty service period of the system may be extended (on a paid basis).
Service support
Within 2 hours by phone from the moment of receiving a written request, and engineer’s visit within 1–7 days (depending on the city of location).
You may be interested in

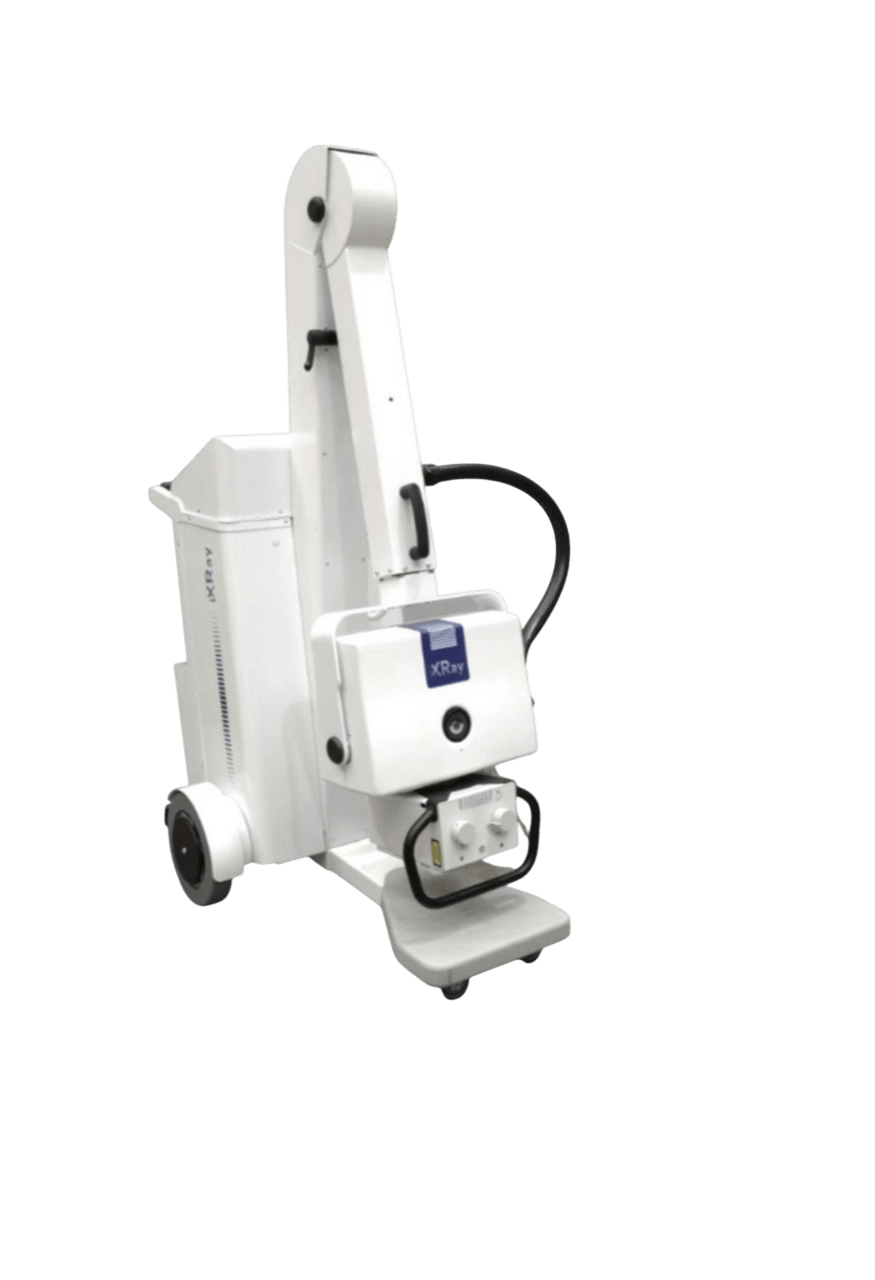

Mobile X-ray System IMAX 1010 V
